Dehumidify Dryer

Further developed and improved two tower type dehumidifying dryer. Maximum dew point is -60 ℃ or lower.
Feature
  • By supplying dry hot air to achieve quick drying, productivity is high.
  • Economical design that saves electricity for blowing and heating by circulating dry air.
  • Reduction of molding loss due to circulation design that promises stable drying at -40 ℃ regardless of weather conditions.
  • Dehumidified products are durable and glossy.
  • Low power cost, low molding loss and simple maintenance. In other words, it boasts a fast return on investment.
  • Compared to the conventional Hopper Dryer, the capital investment cost is much higher, but if it is used more than 6 months, it generates more profit.
  • It shows outstanding effects in drying engineering plastics such as PET, PBT, PC, NYLON as well as general plastics.
zoom in
제습 드라이어 1제습 드라이어 2

제습 드라이어 3

  • The best drying is possible by expanding the cooling line in the existing two-top system.
  • The dehumidifier uses UOP's Molecular Sieve (USA) products, and the 4-way valve that selects the dehumidification tower is also a perfect ball valve type that is used for precision dehumidification.
  • All parts are configured independently for easy maintenance.
  • Low Dew Point dehumidifying dryer (-40˚C ~ -60˚C): Maintains uniformity of low dew point.
  • Touch Panel, Dehumidification Air Flow Check Air Flow Meter (Basic option): Built-in dew point,, ∙ check of abnormality of each part, temperature control, line check.
  • Equipped with high efficiency cooling cooler (utility model application).
  • Convenient dehumidifiers can be changed even for beginners. (Molecular sieve)
Dew point data of 2-tower type dehumidifier

2탑식 노점 데이터

  • Dehumidification Hopper has 50mm double insulation, which blocks 100% of condensation due to the deviation between inside and outside of Hopper.
  • The reservation function and the transfer of raw materials are provided as basic specifications to enhance the convenience of use.

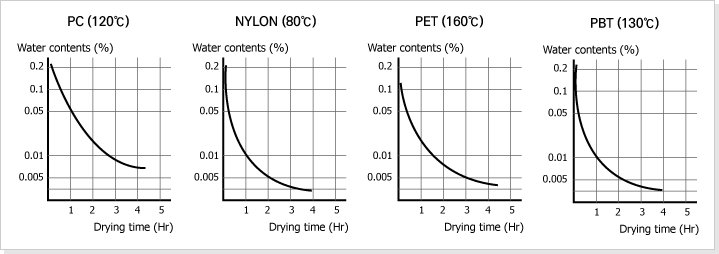

Drying performance curve

Drying performance curve

  • Specifications of the product may change depending on the grade of raw materials, drying temperature, initial moisture content, etc.
  • Products other than the standard specifications are made to order.
Drying time and temperature by material table
Material Initial Moisture Quentity Drying Moisture Quentity Drying Time Drying temp
ABS Acrylnitrl Butadion Styene 0.3% 0.07% 2~3H 80℃
PA 6 Polymide 0.5% 0.07% 4~6H 70~80℃
PA 66 Polymide 66 0.5% 0.07% 4~6H 70~80℃
PA 6. 10 Polymide 6. 10 0.5% 0.07% 3~4H 75℃
PA 11 Polymide 11 1% 3~4H 75℃
PPD 0.1% 0.07% 2H 120℃
PC Polycarbonate 0.2% 0.02% 2~3H 120℃
PE Ployettylene 0% 1H 90℃
PE Ployettylene w/carbon black 0.3% 0.05% 4~6H 85℃
PET 0.3% 0.005% 4~6H 140~160℃
PETG 0.3% 0.02% 4H 60~70℃
PU 0.2% 0.02% 3H 80~100℃
PMMA Polyoxymethytene 0.4% 0.05% 3~4H 80℃
PBT 0.25% 0.02% 3~4H 130℃
POM Pilyoxymethylene 0.3% 0.01% 2~3H 100℃
PP Polyprophiene 0% 1H 90℃
PPO Polyprophteneoxide 0.2% 0.07% 2H 110~120℃
PS Polystyrene 0% 1 H 80℃
PUR Polyuretharte 0.2% 0.02% 3H 90℃
PVC Polyvirtyl chloride 0.15% 0.05% 1~3H 70℃
SAN Styrene acrylonitrile copolymer 0.3% 0.07% 2~3H 80℃
SB Styene Hi-impact 0.6% 2H 80℃
lonemer (SurlynIR) 1% 2~8H 50℃
VPE Crossilnked Polythylene 2% 6 H 50℃
KODAR PETG 6783 1.8% 4H 66℃
PES polyester 0.5% 4H 75℃
CA Ceilulode Acetate 1% 0.02 4~6H 60~70℃
CAB Ceilullose Acetate Butyrate 1.3% 2~3 H 75℃
CP Cellulose Propfon ate 1.3% 2~3H 75℃
Ionomer 1.4% 2~3H 90℃

This data is our measures, so it may vary by the initial moisture grade and application.

Specification
Model Drying
Blower(kw)		 Drying
Healer(kw)		 Regeneration
Blower(kw)		 Regeneration
Healer(kw)
ASD-025 0.75 6 0.2 4
ASD-050 0.75 6 0.2 4
ASD-075 1.75 8 0.2 4
ASD-100 1.75 8 0.4 6
ASD-150 2.55 12 0.4 6
ASD-200 2.55 12 0.75 8
ASD-300 3.7 16 0.75 8
ASD-500 3.7 18 0.75 12
ASD-1000 6.3 24 1.75 16
ASD-1500 8.6 28 1.75 16
ASD-2000 12.6 32 1.75 16
Model Molecular
Sieve cap(kg)		 Coller Capacity
(l/min)		 Dimension
W×L×H(mm)
ASD-025 2×2=4 20 750×1000×1700
ASD-050 2×2=4 20 750×1000×1700
ASD-075 3×2=6 20 750×1000×1700
ASD-100 5×2=10 30 850×1200×1850
ASD-150 6×2=12 30 850×1200×1850
ASD-200 9×2=18 20×2=40 900×1300×1900
ASD-300 12×2=24 25×2=50 900×1300×1900
ASD-500 20×2=40 30×2=60 900×1300×1900
ASD-1000 40×2=80 60×2=120 1400×1500×2600
ASD-1500 60×2=120 70×2=140 1400×1500×2800
ASD-2000 80×2=160 80×2=160 1500×2000×3100

Specifications of this product may change due to quality improvement.
